More Power
The optimized motor control provides higher output power.
Max Output*1
- The values shown are for reference purposes and may vary according to the workpiece materials and other operating conditions.

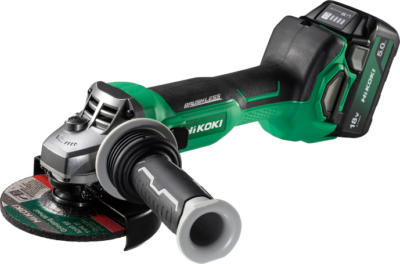

- G1810DA / G1812DA / G1813DA
Maintenance Free & High Efficiency Brushless Motor
Longer Lifetime
The brushless motor offers a significantly extended product life cycle by eliminating trouble including armature burnout, layer short or commutator wear even in severe work environments.
No Carbon Brush Replacement Required
There is no hassle and no cost of carbon brush replacement.
Designed for Maximum Ease of Use
-
Small Grip Circumference
The lightweight and compact body with a slim grip and small head offers easy handling and efficient operation.
-
Easy to Maintain Mesh Dust Filter
An easy to replace mesh filter provides additional protection from dust.
Variable speed model shown for illustration purposes only.
Great Safety Features
-
Kickback Protection System
Monitors a sudden drop in the motor rotation speed and stops the motor quickly to reduce the reaction force (kickback).
Depending on operating conditions, the Kickback Protection System may not work or provide specified performance. Make sure that the workpiece is placed and supported properly, and that the main unit is held firmly during operation. Additionally, carefully read “KICKBACK AND RELATED WARNINGS” in the instruction manual. -
Restart Protection
The motor does not restart after the power has been temporarily cut off during operation to avoid accidents.
-
Soft Start
Allows comfortable operation by reducing the reaction force on start up.
Runtime per Charge*
| Work | Ah | Runtime per Charge | |
|---|---|---|---|
| Concrete Scoring | Using a 105mm diamond wheel, Work Material: Concrete, Cutting Depth: 20mm, Thrust Power: 30N |
5.0Ah | Approx. 8.6m |
- The values shown are for reference purposes and may vary according to the workpiece materials and other operating conditions.
Specifications
| Capacity | Wheel Dia. | 125mm | |||
|---|---|---|---|---|---|
| Hole Dia. | 22.23mm | ||||
| Thickness | 6mm | ||||
| Spindle Thread | M14 x 2 | ||||
| Battery Voltage | 18V | ||||
| No Load Speed | 8,000/min | ||||
| Overall Length | 358mm | ||||
| Weight*1 | with BSL1850MA | 2.6kg | |||
| with BSL36B18*2 | 2.9kg | ||||
| Standard Accessories*3 | 2 Batteries (BSL1850MA), Charger (UC18YSL3), Side Handle, Wheel Guard, Depressed Center Wheel*4, Wrench, 2 Battery Covers, Carrying Case | ||||
